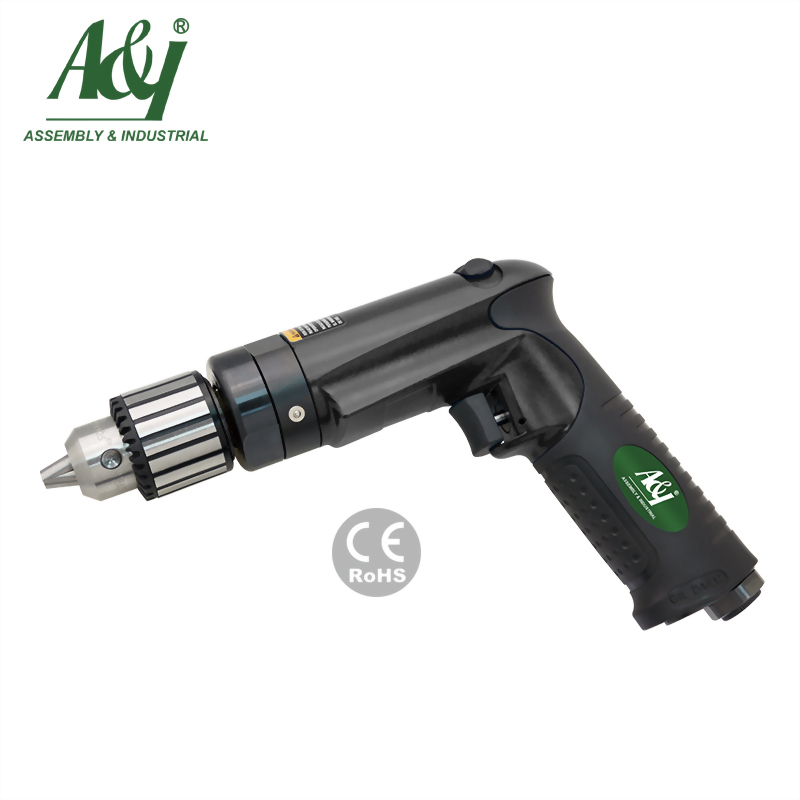

Industrial 3/8" Air Reversible Drill
Model :
AI-4513R28
- Light Weight: Aluminum housing.
- Compact Design: Minimize operator's work during continuous hard drilling operation.
- Air valves can be started slowly during high-speed operation, to protect workpiece.
- Minimal vibration during operation.
-
3 planet gear system
-User-friendly gear case design allow easy access for both assemble & disassemble.
-With needle bearing installed, allows drill extend its service life as well as increase load capacity.
-Gear case install on the housing to prevent slipped.
|
Model No. |
Chuck Capacity |
Free Speed (r.p.m.) |
Spindle |
Overall Length |
Air Inlet (PT) |
Air Hose (I.D.) |
Air Consumption |
Net Weight |
|
|||
|
inch |
mm |
cfm |
l/min |
lbs |
kgs |
|||||||
|
AI-4513R28
|
3/8” |
2,800 |
3/8”-24 |
9-1/5 |
234 |
1/4” |
3/8” |
14 |
400 |
2.43 |
1.1 |
|
