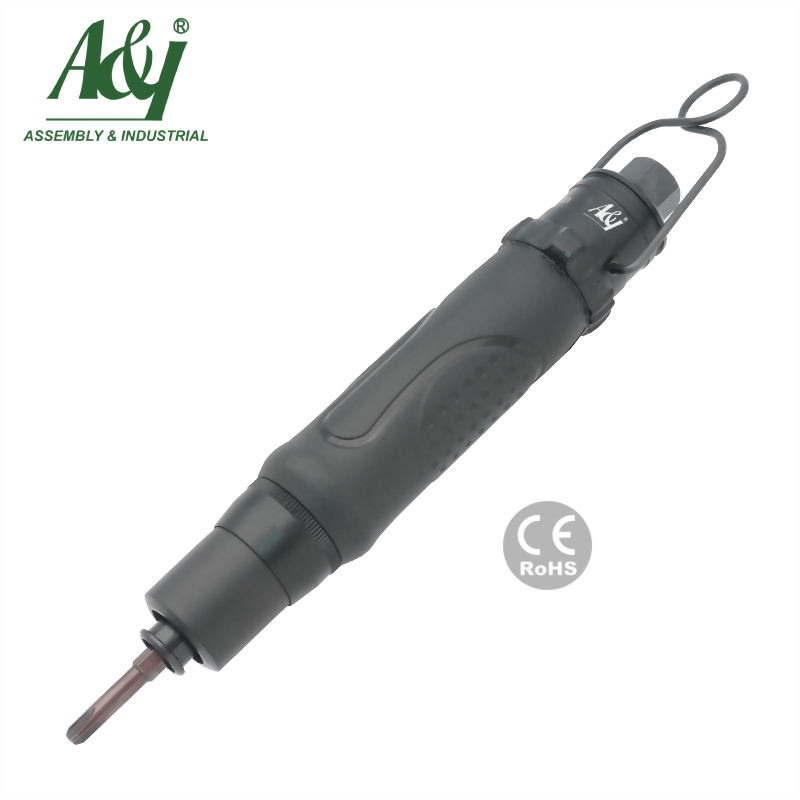

Industrial Full-Auto Shut Off Composite Screwdriver
Model :
AIP030
- The maximum torque up to 28 Nm and the repeatable torque accuracy within +/- 3%.
- Assembly Products high performance air screwdrivers are designed to offer the ultimate in power and comfort.
- The clutch mechanism shuts off the air supply when the preset torque setting is achieved, preventing over-torque conditions from occurring.
- Safe operation with reduced noise, vibration and low torque reaction.
- Soft resin for ergonomic grip with good touch and anti-slip feature.
|
Model No. |
Free Speed (r.p.m.) |
Torque Range(±3%) |
Noise Level ±3dB(A) |
Air Consumption (mᶾ/min) |
O.A.L (mm) |
Dia. (mm) |
Weight (g) |
|
|
N-m |
In-lb |
|||||||
|
AIP030 |
1,000 |
0.5-3.0 |
4.4-26.6 |
74 |
0.28 |
198 |
35 |
530 |
